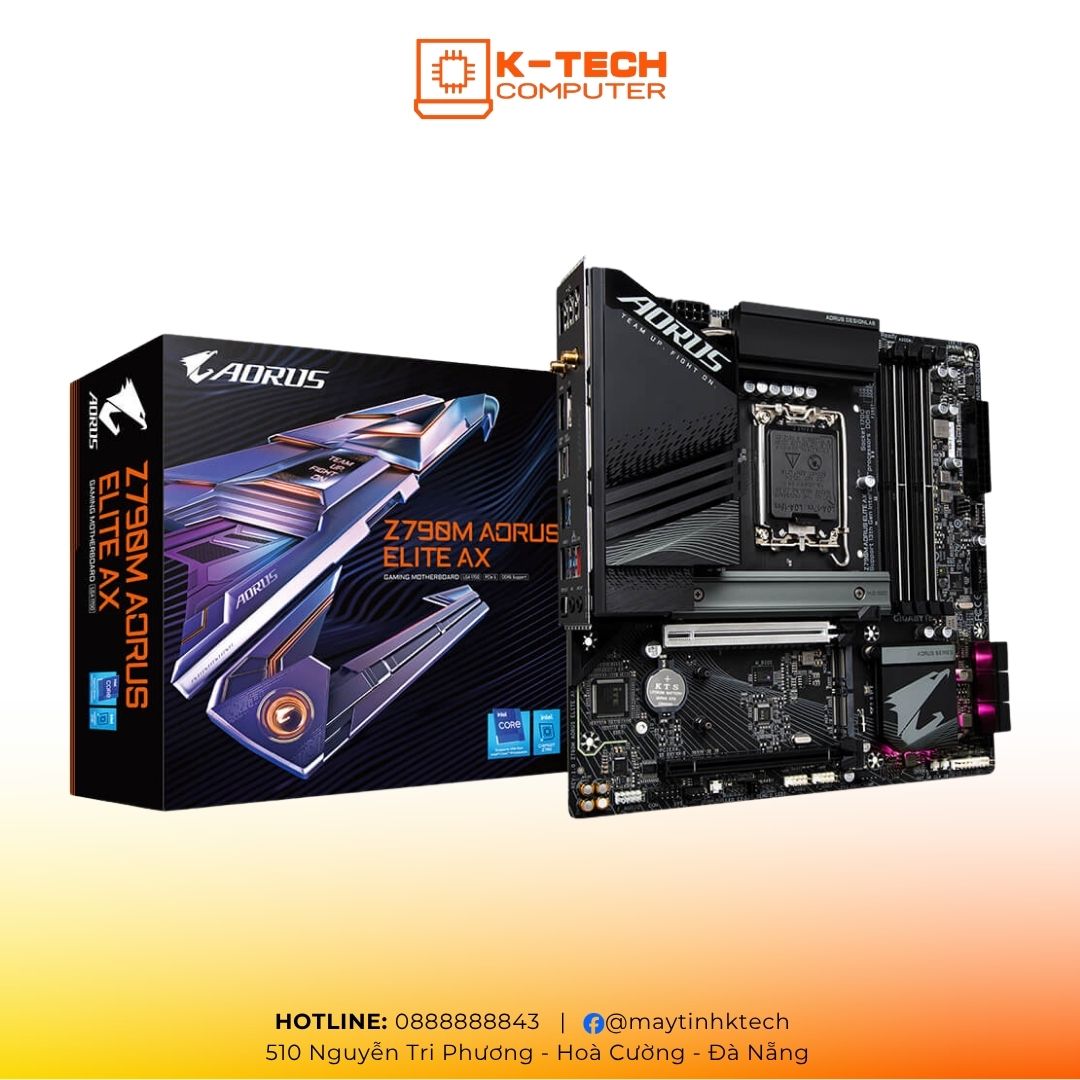

MAIN GIGABYTE Z790M Aorus Elite AX (rev. 1.0) DDR5 2nd

Name: MAIN GIGABYTE Z790M Aorus Elite AX (rev. 1.0) DDR5 2nd - KTech Computer
SKU: SP001634
Price: 4000000 VND
Availability: InStock

Mã SP: SP1537

Đánh giá: 0

Bình luận: 0

Đã bán: 0

Bảo hành: 36 tháng.

Xem chi nhánh đang có còn hàng

Showroom Miền Bắc:

Showroom Miền Nam:

Chú ý: Sản phẩm có thể điều chuyển kho theo yêu cầu của quý khách.

4.000.000 ₫

Khuyến mãi

Chương trình ưu đãi giảm thêm 200 khi build PC
Có cơ hội nhận ngay 1 bộ phím chuột
Hỗ trợ lắp ram DDR 5

còn 1 hàng

MAIN GIGABYTE Z790M Aorus Elite AX (rev. 1.0) DDR5 2nd

BẢNG THÔNG SỐ CHI TIẾT:

CPU Socket	LGA1700 socket: Support for the 14th, 13th, and 12th Generation Intel® Core™, Pentium® Gold and Celeron® Processors
Chipset	Intel® Z790 Express Chipset
Memory	– Support for DDR5 7600(O.C.) /7400(O.C.) /7200(O.C.) /7000(O.C.) /6800(O.C.) /6600(O.C.) / 6400(O.C.) / 6200(O.C.) / 6000(O.C.) / 5800(O.C.) / 5600(O.C.) / 5400(O.C.) / 5200(O.C.) / 4800 / 4000 memory modules
	– 4 x DDR5 DIMM sockets supporting up to 192 GB (48 GB single DIMM capacity) of system memory
	– Dual channel memory architecture
	– Support for ECC Un-buffered DIMM 1Rx8/2Rx8 memory modules (operate in non-ECC mode)
	– Support for non-ECC Un-buffered DIMM 1Rx8/2Rx8/1Rx16 memory modules
	– Support for Extreme Memory Profile (XMP) memory modules
Integrated Graphics	– Integrated Graphics Processor-Intel® HD Graphics support:
	– 1 x HDMI port, supporting a maximum resolution of 4096×2160@60 Hz
	– 1 x DisplayPort, supporting a maximum resolution of 4096×2304@60
Audio	Realtek® ALC1200 CODEC
	– High Definition Audio
	– 2/4/5.1/7.1-channel
	– Support for S/PDIF Out
LAN	Realtek® 2.5GbE LAN chip (2.5 Gbps/1 Gbps/100 Mbps)
Wireless Communication module	Intel® Wi-Fi 6E AX211
	– WIFI a, b, g, n, ac, ax, supporting 2.4/5/6 GHz carrier frequency bands
	– BLUETOOTH 5.3
	– Support for 11ax 160MHz wireless standard and up to 2.4 Gbps data rate
Expansion Slots	– CPU: 1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16)
	– Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4)
	– Support for AMD CrossFire™ technology
Storage Interface	– CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU)
	– Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB)
	– Chipset: 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB)
	– 6 x SATA 6Gb/s connectors
	– RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices
	– RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
USB Ports	– Chipset: 1 x USB Type-C® port on the back panel, with USB 3.2 Gen 2×2 support
	– Chipset: 1 x USB Type-C® port with USB 3.2 Gen 2 support, available through the internal USB header
	– Chipset: 1 x USB 3.2 Gen 2 Type-A port (red) on the back panel
	– Chipset+2 USB 2.0 Hubs: 6 x USB 3.2 Gen 1 ports (4 ports on the back panel, 2 ports available through the internal USB header)
	– Chipset+2 USB 2.0 Hubs: 8 x USB 2.0/1.1 ports (4 ports on the back panel, 4 ports available through the internal USB headers)
Internal I/O Connectors	– 1 x 24-pin ATX main power connector
	– 1 x 8-pin ATX 12V power connector
	– 1 x 4-pin ATX 12V power connector
	– 1 x CPU fan header
	– 1 x water cooling CPU fan header
	– 3 x system fan headers
	– 1 x system fan/water cooling pump header
	– 2 x addressable LED strip headers
	– 2 x RGB LED strip headers
	– 3 x M.2 Socket 3 connectors
	– 6 x SATA 6Gb/s connectors
	– 1 x front panel header
	– 1 x front panel audio header
	– 1 x USB Type-C® header, with USB 3.2 Gen 2 support
	– 1 x USB 3.2 Gen 1 header
	– 2 x USB 2.0/1.1 headers
	– 2 x Thunderbolt™ add-in card connectors
	– 1 x Trusted Platform Module header (For the GC-TPM2.0 SPI/GC-TPM2.0 SPI 2.0 module only)
	– 1 x serial port header
	– 1 x reset button
	– 1 x Q-Flash Plus button
	– 1 x Clear CMOS button
	– 1 x reset jumper
Rear I/O Ports	– 1 x USB Type-C® port, with USB 3.2 Gen 2×2 support
	– 1 x USB 3.2 Gen 2 Type-A port (red)
	– 4 x USB 3.2 Gen 1 ports
	– 4 x USB 2.0/1.1 ports
	– 2 x SMA antenna connectors (2T2R)
	– 1 x HDMI 2.0 port
	– 1 x DisplayPort
	– 1 x RJ-45 port
	– 1 x optical S/PDIF Out connector
	– 2 x audio jacks
I/O Controller	iTE® I/O Controller Chip
Hardware Monitoring	– Voltage detection
	– Temperature detection
	– Fan speed detection
	– Water cooling flow rate detection
	– Fan fail warning
	– Fan speed control
BIOS	– 1 x 256 Mbit flash
	– Use of licensed AMI UEFI BIOS
	– PnP 1.0a, DMI 2.7, WfM 2.0, SM BIOS 2.7, ACPI 5.0
Unique Features	– Support for GIGABYTE Control Center (GCC)
	– Support for Q-Flash
	– Support for Q-Flash Plus
	– Support for Smart Backup
Software Bundle	– Norton® Internet Security (OEM version)
	– LAN bandwidth management software
Operating System Support	– Support for Windows 11 64-bit
	– Support for Windows 10 64-bit
Form Factor	Micro ATX Form Factor; 24.4cm x 24.4cm

Xem tất cả

Thông số kỹ thuật

Sản phẩm	Bo mạch chủ
Socket	LGA 1700
Chipset	Z790
CPU hỗ trợ	Intel
Khe cắm mở rộng	1 x PCI Express x16 slot, supporting PCIe 5.0 and running at x16 (PCIEX16) * For optimum performance, if only one PCI Express graphics card is to be installed, be sure to install it in the PCIEX16 slot. Chipset: 1 x PCI Express x16 slot, supporting PCIe 4.0 and running at x4 (PCIEX4) Support for AMD CrossFire™ technology
Ổ cứng hỗ trợ	CPU: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2A_CPU) Chipset: 1 x M.2 connector (Socket 3, M key, type 2280 PCIe 4.0 x4/x2 SSD support) (M2Q_SB) 1 x M.2 connector (Socket 3, M key, type 22110/2280 PCIe 4.0 x4/x2 SSD support) (M2P_SB) 6 x SATA 6Gb/s connectors RAID 0, RAID 1, RAID 5, and RAID 10 support for NVMe SSD storage devices RAID 0, RAID 1, RAID 5, and RAID 10 support for SATA storage devices
